What is a Bulk Powder Tanker?
Powder tank trucks are suitable for bulk transportation and pneumatic unloading of fly ash, cement, lime powder cementing special cement and other non-flammable, non-explosive, non-toxic and non-corrosive dry powder materials with a particle diameter of no more than 0.1mm. They are widely used in industry, agriculture, commerce, power plants and construction.
What is the structure of a powder tanker trailer?
The main assembly of the powder tank truck consists of the tank body, power system (diesel engine or power take-off, air compressor), air circuit system, brake system and other parts. 1. Tank body: The tank body is mainly composed of two inclined cones and front and rear heads, placed on the frame and also serves as a carrier. The tank body is equipped with a feed port (manhole), a non-slip platform and a ladder for loading and maintenance personnel to enter the tank. The tank has a slide plate (part of the tank body), an air chamber, a fluidized bed composed of a porous plate (or a special canvas), a discharge port, reinforcement ribs, etc. The tank body structure is V-shaped, W-shaped or straight and simple.
What is the working principle of the powder tanker ?
The vehicle-mounted air compressor is driven by its own engine or the main vehicle engine through the power take-off drive shaft or pulley, and the compressed air is sent into the air chamber of the sealed tank through the pipeline, so that the powder and granular materials on the fluidized bed are suspended into a fluid state. When the pressure in the tank reaches the rated working pressure, the unloading butterfly valve is opened, and the powder and granular materials are unloaded through the unloading system.
What are the product features of the powder tanker ?
Sealed transportation can effectively avoid the scattering of goods and pollution to the environment, and has the characteristics of short transportation cycle, high efficiency and low cost. Our products use advanced 3D design software to optimize the tank structure. Light vehicles use high-strength steel to improve product reliability and reduce the weight of the vehicle body. The tank body adopts fully automatic longitudinal and circumferential welding technology, and the welds are firm and beautiful. The whole vehicle is shot blasted to improve the strength of the vehicle and the adhesion of the paint, and prevent rust and paint peeling. The vehicle accessories use well-known domestic and foreign brands to provide customers with transportation equipment with more stable quality, lighter weight and more convenient operation.

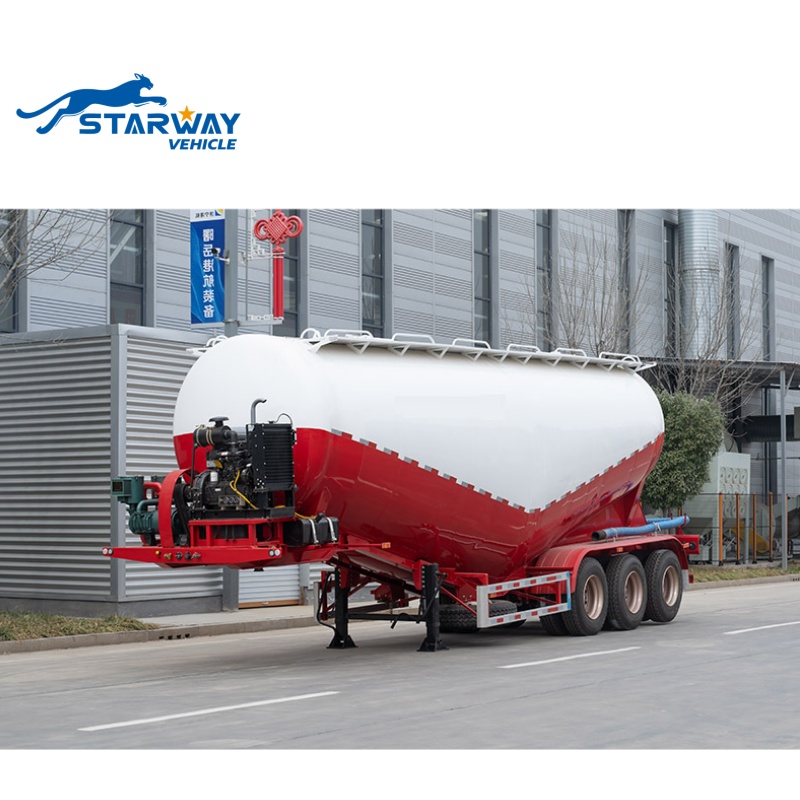

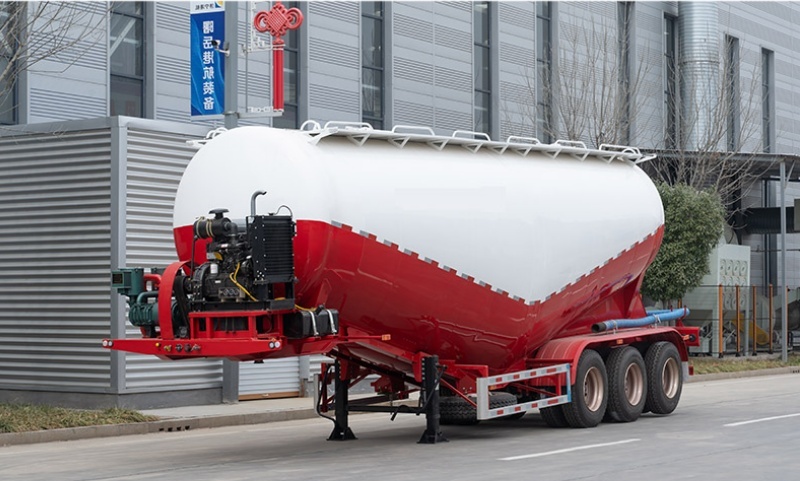

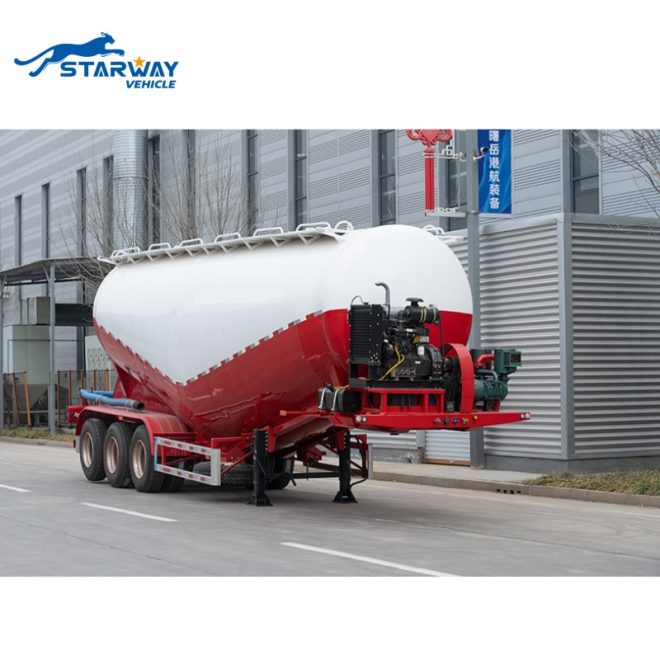

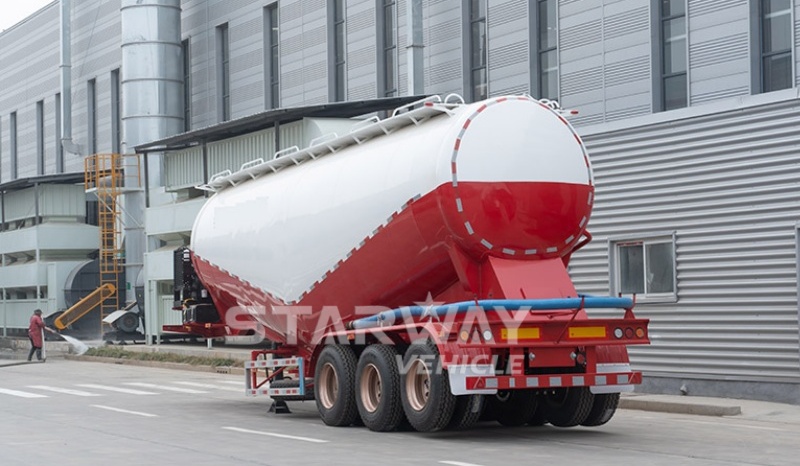

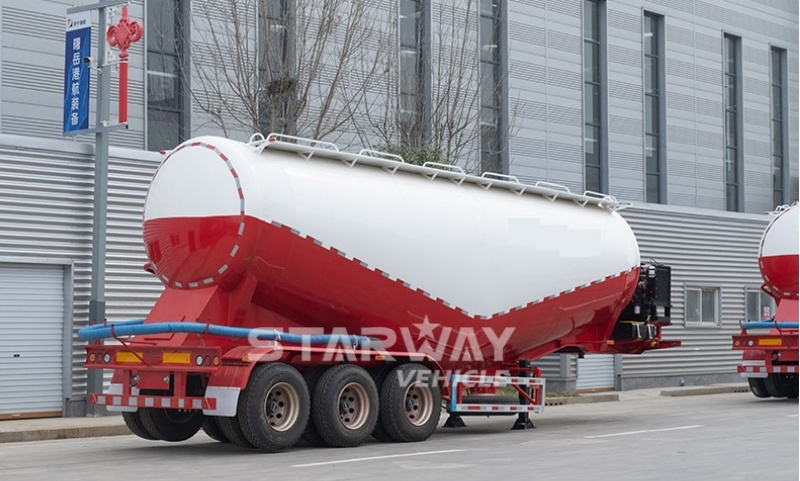

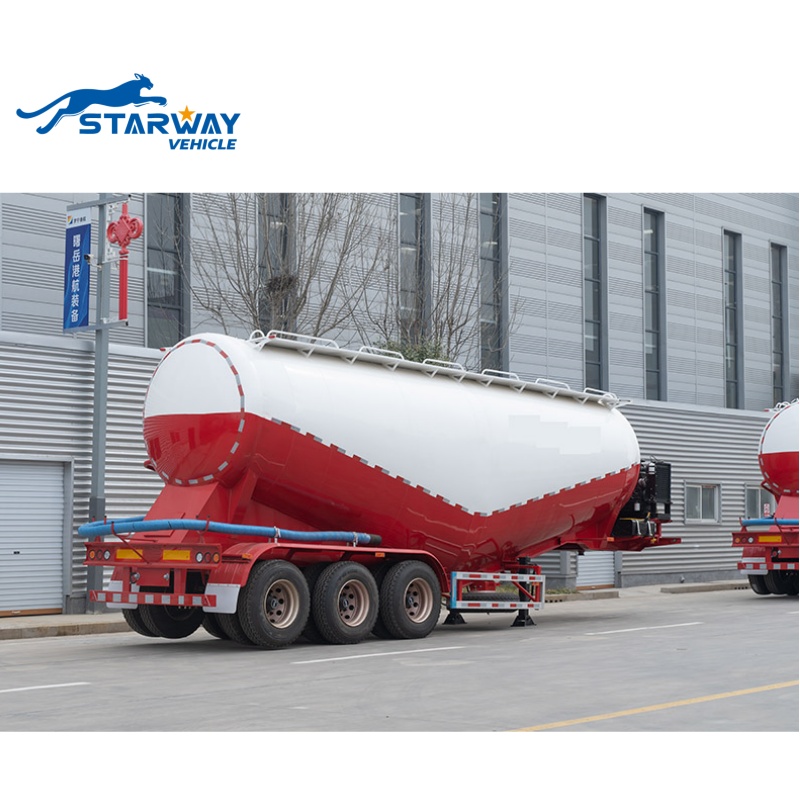

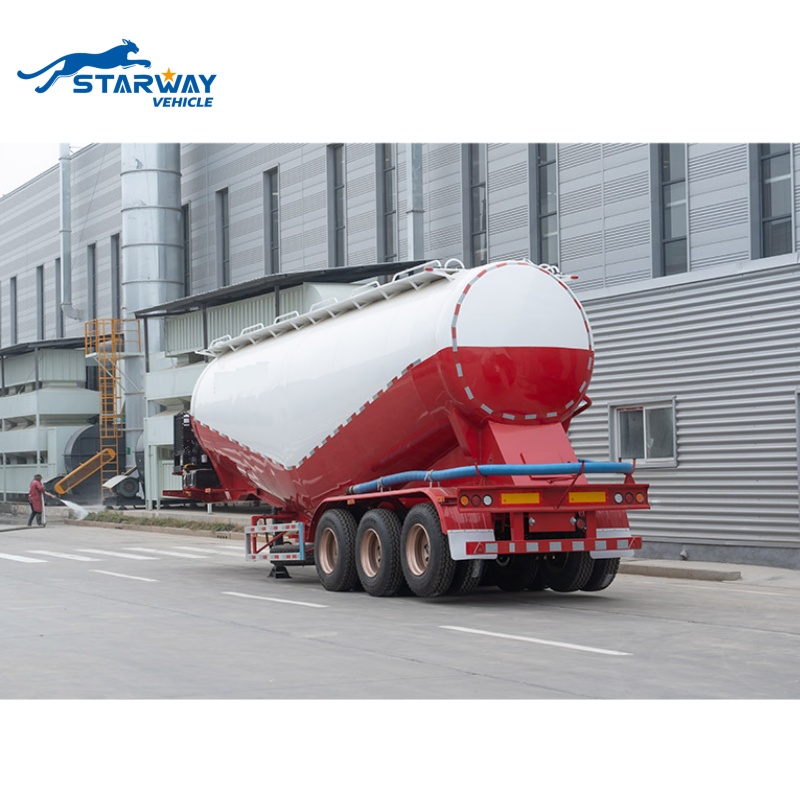

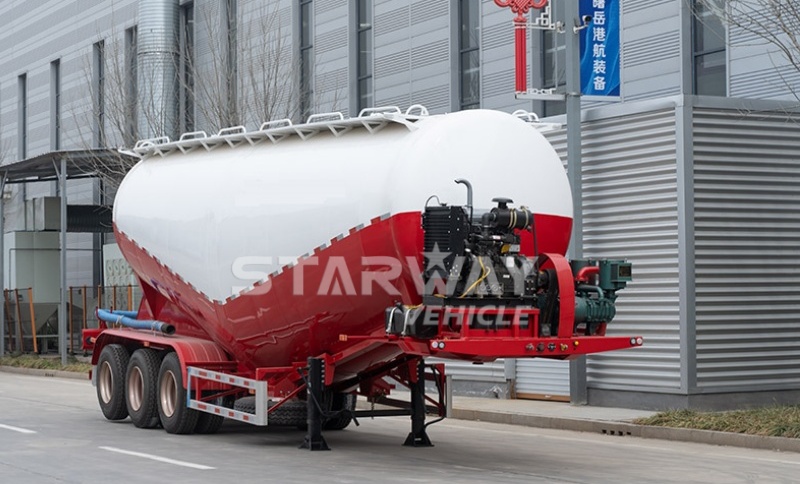

The Specifications of STARWAY 3 Axles Powder Tanker Trailer
Dimensions: 12,000mm * 2,550mm * 3,900mm (standard size, Customizable)
Axles: 3 axles, Customizable
Capacity: 45CBM, Customizable
Applications: Transporting bulk cement, grains, and other bulk materials
Material: Carbon steel
Compartment Quantity: Customizable
Engine: Weichai 4102
Compressor: Bohai 12 CBM/min
Suspension: Mechanical suspension or Air suspension
Leaf Springs: 90mm*13mm*10 pieces / 90mm*16mm*10 pieces
Tires: 12R22.5 (8/12/16 Tires)
Kingpin: 2ʺ/3.5ʺ JOST, other brands available
Landing Gear: 28-ton, two-speed, JOST/other brands
Paint: Electrophoretic paint
Other Customizable Options: Rim, ABS, Reflective Tape, LED lights, toolbox, etc
