Sand gravel Transport

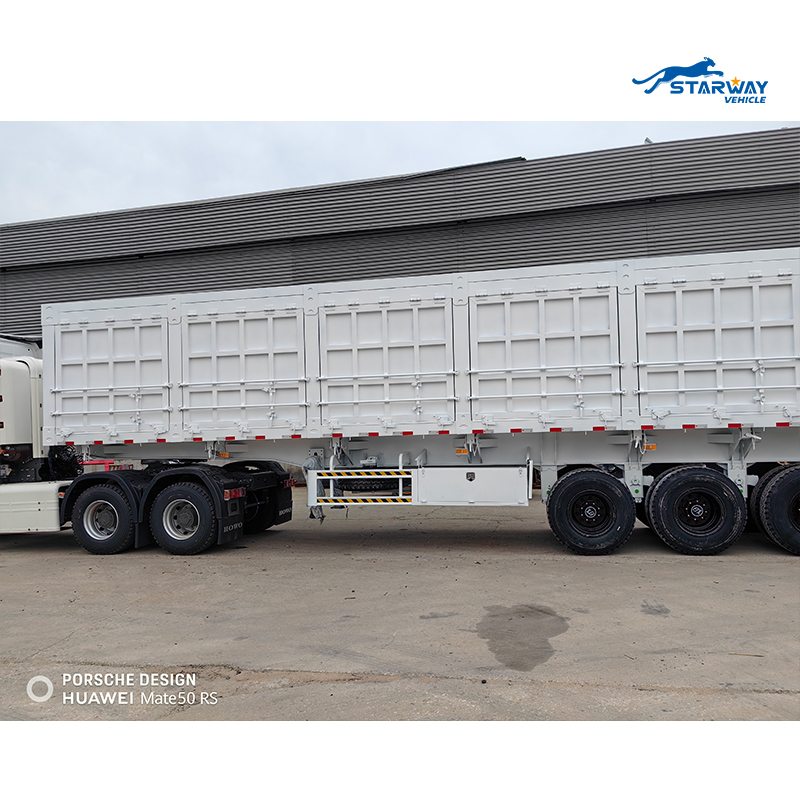

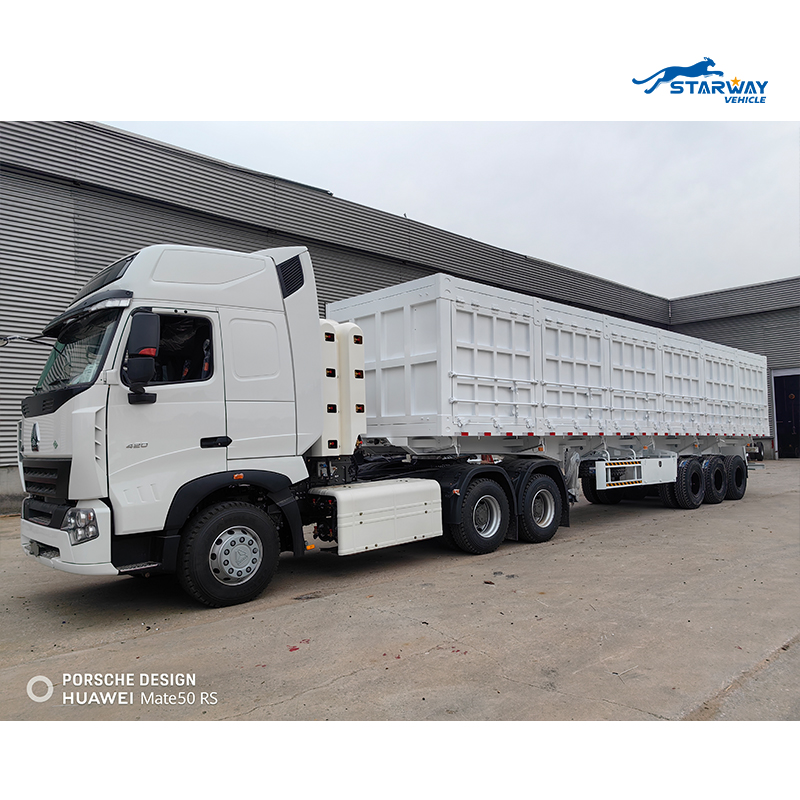

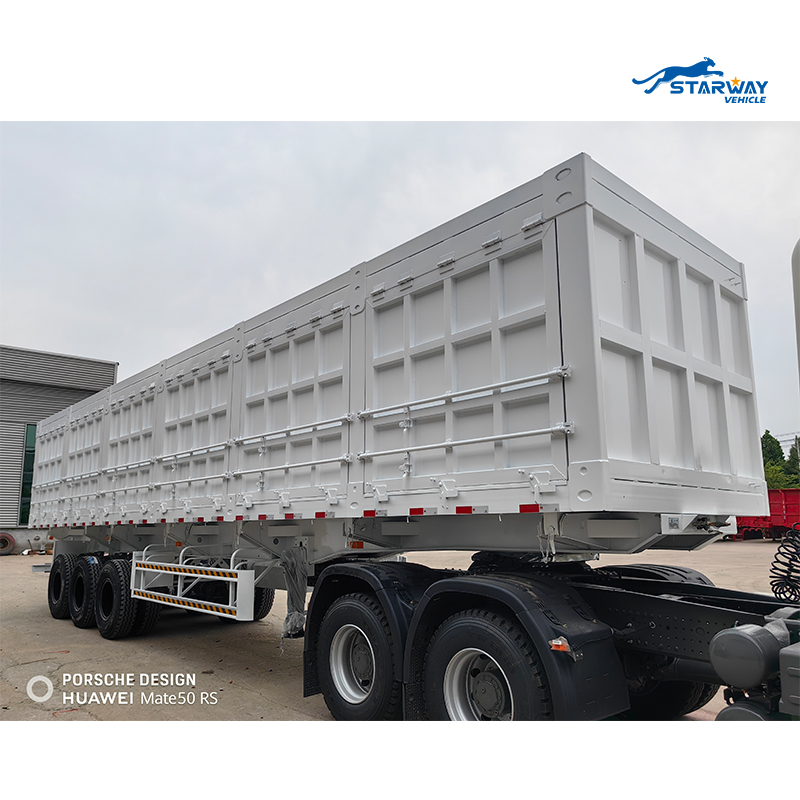

3 Axles 60 Tons Side Dump Trailer

photobank (2)

photobank (1)

3 Axles 60 Tons Side Dump Trailer

3 axles U type Tipper/Dump Semi Trailer With HYVA system :Widely used to transport sand, stone, coal and other solid building materials or industrial raw materials. Rear dump semi-trailers are designed to make unloading easier. After the back of the trailer is locked, sand can be loaded. When it arrives at the destination, the front side of the semi-trailer can be raised, which makes the goods drop from the back. The bucket of the trailer requires a thicker steel plate, because the goods are often hard materials, and the steel plate can prevent the cargo from damaging the trailer.

Category Sand gravel Transport

Description
Related Products

What is a side dump trailer?

A side dump trailer is a specialized type of semi-trailer designed to transport and efficiently unload bulk materials. Unlike traditional rear dump trailers, which unload from the back, a side dump trailer tilts to one side to release its contents. This unique feature makes side dump trailers especially useful for unloading in confined spaces or areas where rear unloading is not possible.

The side dump trailer operates by connecting a tractor unit to the trailer via a saddle, forming a semi-trailer configuration. Its primary mechanism is a hydraulic lifting system that tilts the trailer bed sideways. Key components of the system include a power take-off (PTO) unit, which is connected to the tractor’s gearbox, a hydraulic pump, valves, hydraulic cylinders, and an oil tank. Additionally, high- and low-pressure pipes ensure smooth flow of hydraulic fluid, enabling the system to function effectively.

When activated, the hydraulic system lifts one side of the trailer bed, allowing materials such as gravel, sand, or construction debris to be unloaded to the side. This side dumping method is ideal for areas where there is limited space for rear unloading. Moreover, the side dump feature provides greater stability, reducing the likelihood of the trailer tipping over during unloading.

Side dump trailers are commonly used in industries like construction, mining, and waste management, where bulk materials need to be transported and unloaded quickly and efficiently. With their versatile design and advanced hydraulic system, side dump trailers are a reliable solution for situations where rear dumping isn’t feasible.

Made of high-strength Q700 steel，which is a high-performance alloy known for its outstanding strength and durability. Its main features include:

Excellent Tensile Strength: With a tensile strength of at least 700 MPa, Q700 steel can withstand heavy pulling forces without failure.
High Yield Strength: Rated at a minimum of 650 MPa, this steel resists permanent deformation even under intense stress.
Good Ductility: With an elongation rate of 18-25%, Q700 steel combines strength with flexibility, enhancing its ability to absorb impact without breaking.
Corrosion Resistance: Built to withstand rust and environmental degradation, Q700 steel maintains its integrity over time.
High Hardness and Toughness: These properties make it ideal for demanding applications where durability is essential.
Thanks to these qualities, Q700 steel is well-suited for applications that require both strength and resilience in challenging conditions.

What are the advantages of side dump semi-trailer ?

Side dump semi-trailers bring distinct advantages over traditional dump trailers, especially when it comes to unloading flexibility. With the ability to dump materials to the side, they are ideal for tight or confined spaces where rear unloading would be impractical. This sideways dumping mechanism also enhances stability, reducing the risk of tipping during unloading.

One of the standout features of side dump semi-trailers is their precise hydraulic system, which ensures controlled, spill-free unloading. This precision not only makes unloading safer but also lightens the overall trailer structure, allowing for larger payloads and increasing efficiency.

Highly versatile, side dump trailers are popular in industries like construction, mining, and waste management. Their design boosts fuel efficiency, allows for heavier loads, and leads to overall cost savings, making them a smart choice for a wide range of heavy-duty transport needs.

Our side dump semi-trailer features a durable powder coating finish that significantly boosts its longevity and performance. This advanced coating process uses electrostatic charges to apply an even layer of powder paint to the trailer’s surface. Once applied, the coating is baked, creating a smooth, uniform finish that provides excellent resistance to wear and corrosion.

This powder coating not only protects the trailer from harsh weather and rough working conditions but also helps it retain its structural integrity and appearance over time. This makes it an ideal choice for side dump trailers operating in demanding environments like construction and mining. With this protective layer, the trailer requires less maintenance and enjoys an extended service life, ensuring reliable performance in tough conditions.

The Specifications of Starway dump semi trailer :

Dimensions: 98,000mm * 2,500mm * 3,800mm (Standard Dimensions, Customizable)

Payload: 70 tons, Customizable

Axles: 3 axles * 13/16T, Customizable

Dump Style: Rear Dump, Customizable to Side Dump

Cylinder: HYVA (model depends on container length)

Main Beam Material: Q345/T700

Tires: 11.00R20/12R22.5 * 8/12/16 pieces

Suspension: Mechanical or Air Suspension

Leaf Springs: 90mm*16mm*10 pieces

Landing Gear: 28T, Two-speed, JOST

King Pin: #50(2″)/#90(3.5″), JOST/other brands

Additional Customizable Options: Paint process, ABS, Reflective Tape, LED lights, etc.
