As a type of semi-trailer, low-bed semi-trailers are often used as transportation vehicles for earthmoving machinery, agricultural machinery, building materials, and industrial raw materials. In terms of cargo transportation, the distinguishing feature of low-bed semi-trailers from ordinary warehouse-type semi-trailers is that the cargo loading platform of low-bed semi-trailers is lower. When transporting some large cargo, the acceptable range for its height will be wider. Bigger. Therefore, low-bed semi-trailers have become a more popular semi-trailer model in the current transportation industry.

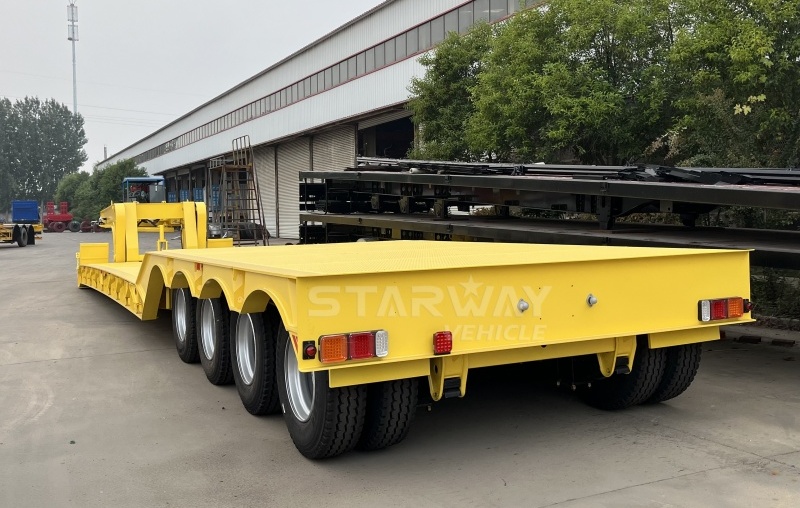

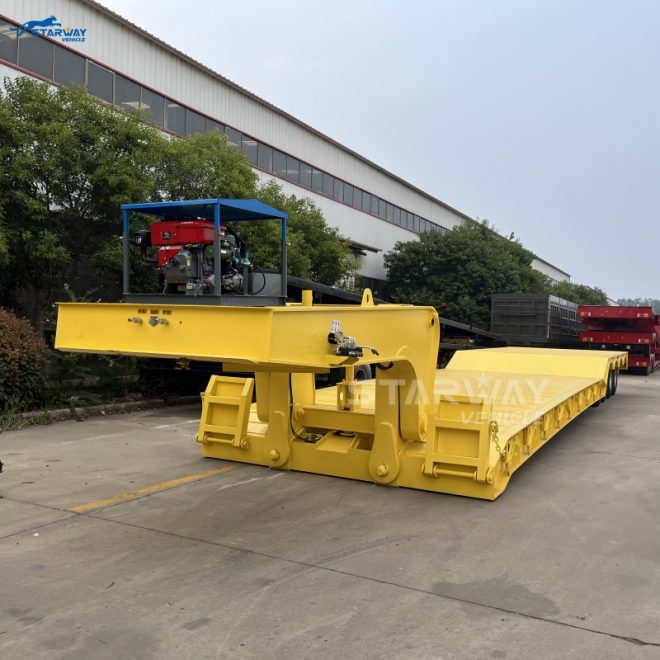

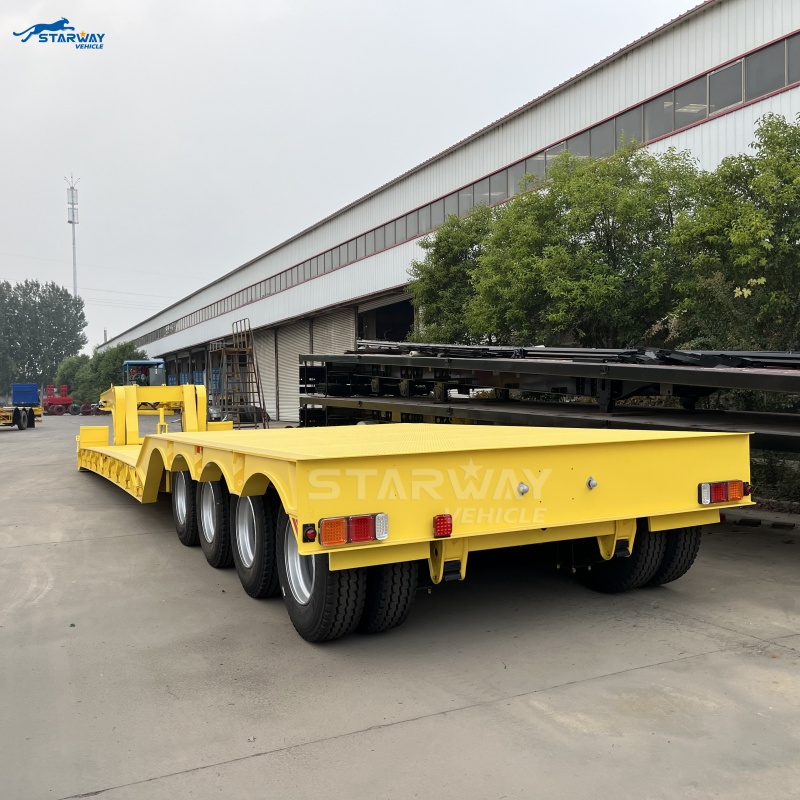

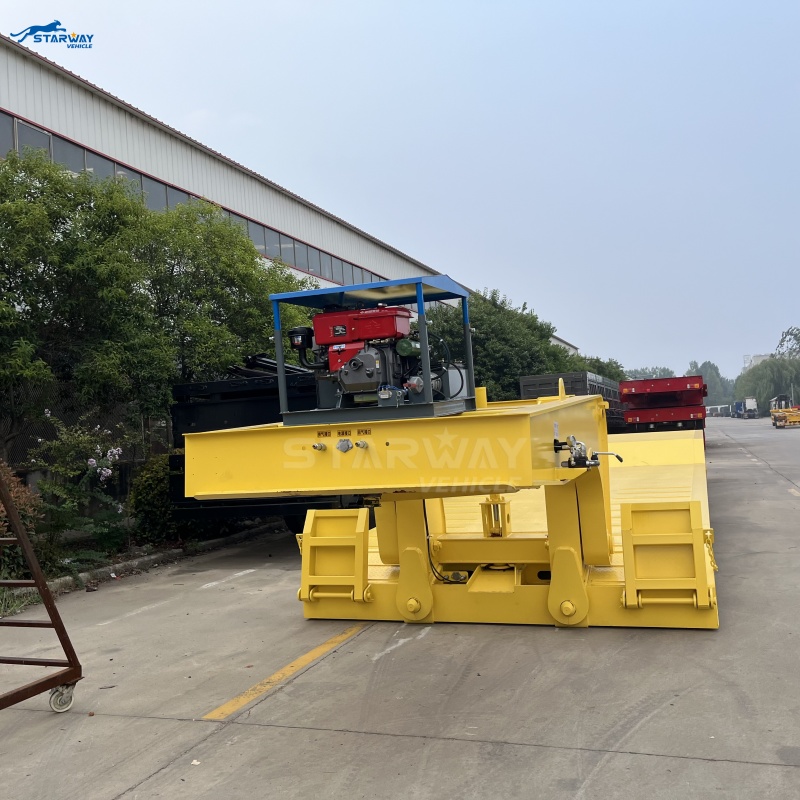

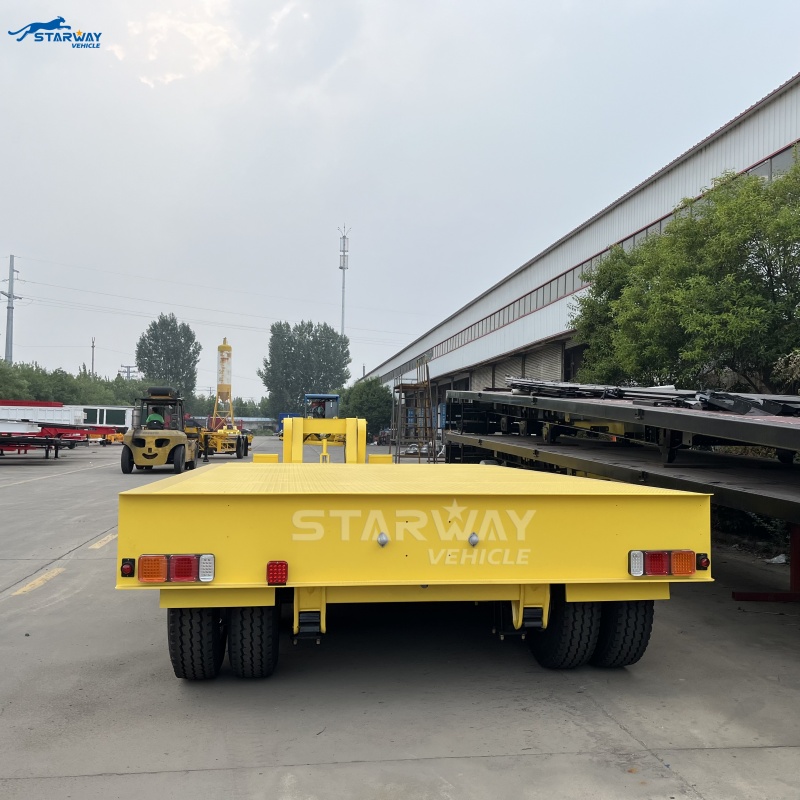

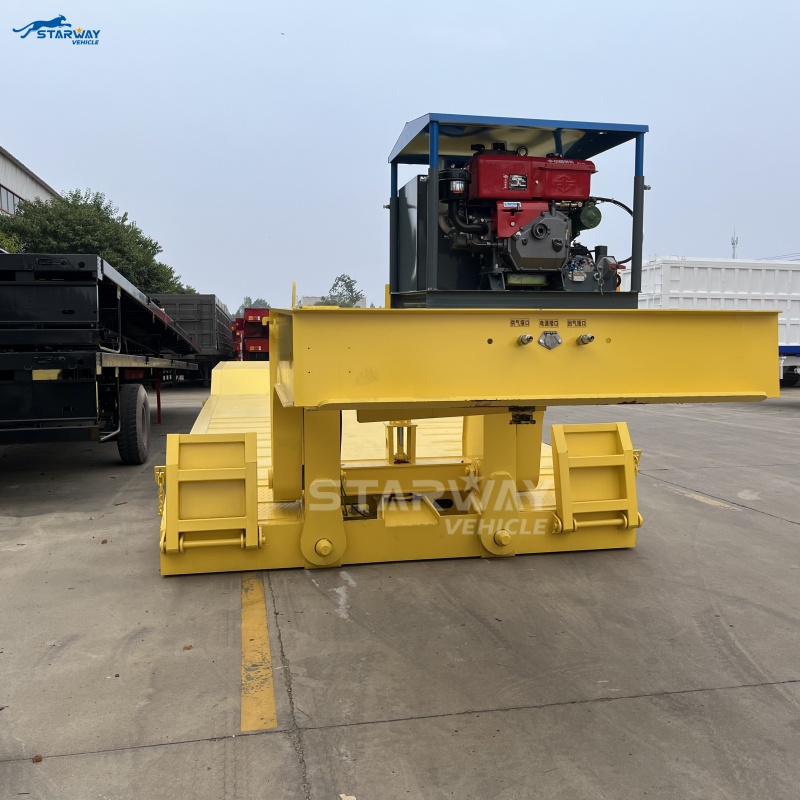

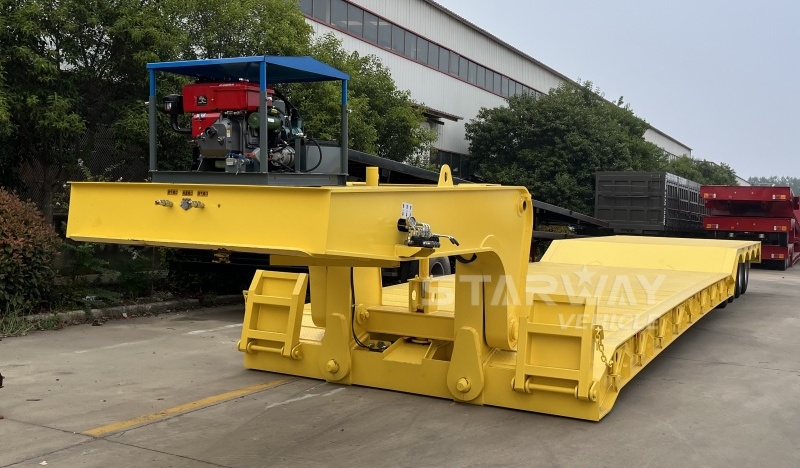

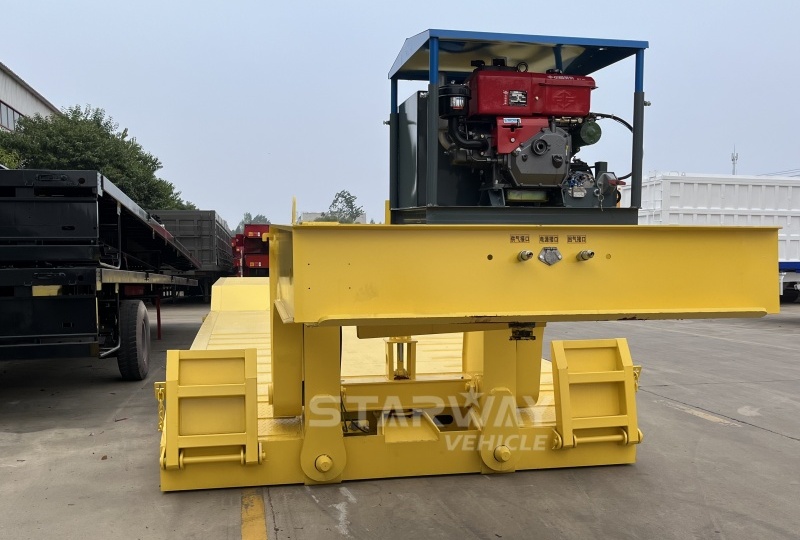

The pictures of lowboy trailers for your reference:
Most of these low-bed semi-trailers are of the gooseneck type, and their distinctive features are: the height of the trailer loading plane is extremely low, close to the height of the axis of the trailer axle. When loading cargo, it is necessary to disassemble the gooseneck part of the front of the vehicle and the main body of the rear trailer, and load from the front. Generally, there will be an independent power source above the gooseneck to drive the trailer’s own hydraulic device. This type of low-bed semi-trailer has a lower loading platform and is often used to transport ultra-wide and ultra-high special large objects.
4axles 100 tons lowboy trailer
When purchasing any type of vehicle, parameter configuration is an important part of the quality difference. Next, we will introduce the key parameters that affect the quality of low-bed semi-trailers, as follows:
1、The overall outline of a low-bed semi-trailer includes three parameters: length, width, and height. The length of a low-bed semi-trailer is generally 13 meters to 13.75 meters, the width is 3 meters, and the height is 1.75 meters.
2、The longitudinal beam specifications of low-bed semi-trailers are determined by parameters such as height, upper wing plate, lower wing plate and web plate, and are important indicators for measuring the load-bearing capacity of low-bed semi-trailers. For longitudinal beams of different specifications, the difference is usually reflected in the thickness of the upper and lower wing plates and web plates.
3、In addition to the above-mentioned vehicle profile and longitudinal beam specifications, the configuration of the semi-trailer legs, synchronous valves, leaf springs, axles and tires also have a great impact on the quality of the semi-trailer. When ordering a trailer, these can be flexibly selected according to the user’s needs and budget.
For good vehicles, configurations often complement each other. For example, high-quality axles will wear significantly less on tires during long-term driving than low-end axles. Lightweight configurations such as aluminum alloy wheels are more effective day after day. The cost savings on the transportation road are also considerable!
The Specification of starway 4 axles lowboy semi trailer:
Dimensions: 18000mm*3000mm*18000mm (Standard Dimensions, Customizable)
Main Beam Material: Q345 / T700
Axles: 3 axles / 3lines 6 axles
Load Capacity:80-100 tons, Customizable
Detachable Goose neck: Available
Widened Parts: Available
Ladders: Mechanical spring / Hydraulic
Suspension: Heavy-duty Mechanical Suspension
Leaf Springs: 90mm*13mm*10pcs/90mm*16mm*10pcs
Tires: 12R22.5/8.25R20 (12)
King Pin: #50(2″)/#90(3.5″), JOST/other brands, replaceable
Landing Gear: 28 tons, two-speed, JOST/other brands
Paint: Electrophoretic paint for enhanced rust and corrosion resistance
Other Customizable Options: Rims, ABS, LED lights, reflective strips, etc.
