Lowbed semi-trailers are usually used to transport heavy-duty vehicles (such as tractors, buses, special-purpose vehicles, etc.), rail vehicles, mining machinery, forestry machinery, construction machinery (such as excavators, bulldozers, loaders, pavers, cranes, etc.) and other heavy-loaded goods. The lower the center of gravity, the better the stability and safety, and the stronger the ability to transport extra-high cargo and pass overhead obstacles.
The vehicle has the characteristics of automation, low center of gravity, high strength, fast disassembly and convenient loading. It can load extra-wide large equipment, containers, bulk cargo, etc. to meet the needs of multiple transportation purposes.

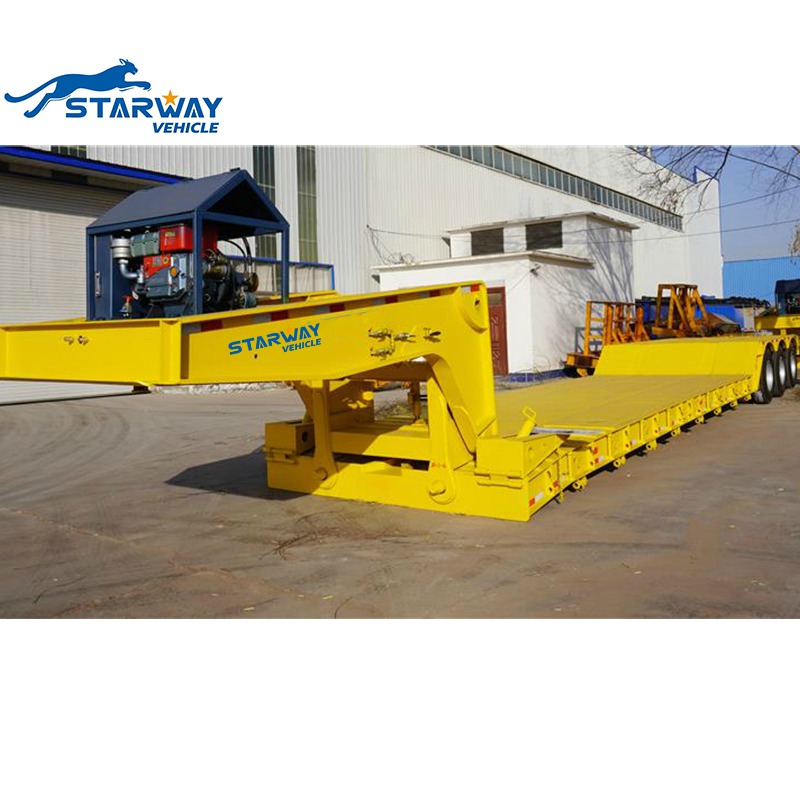

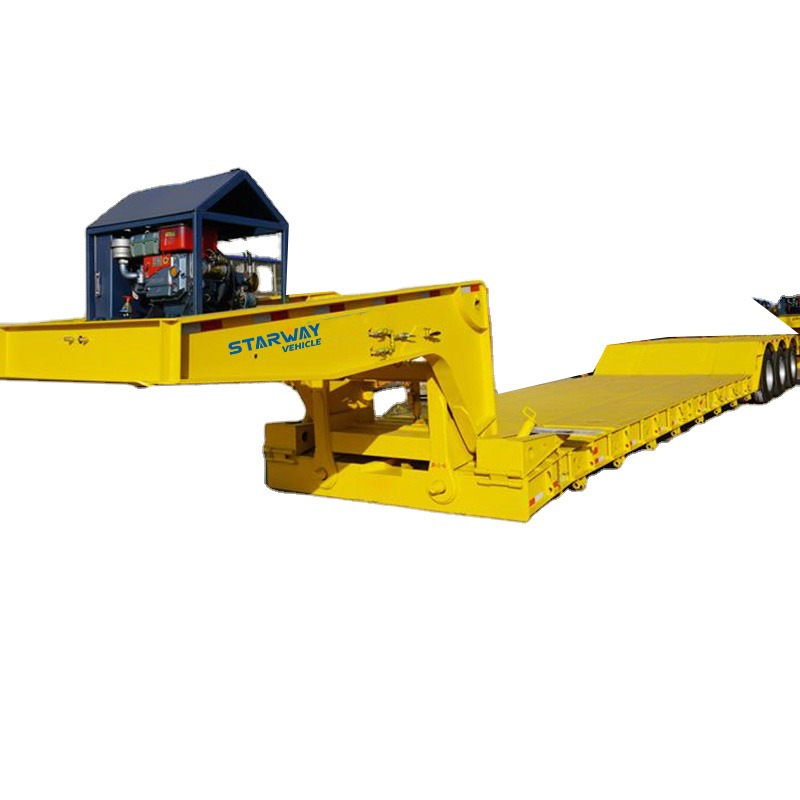

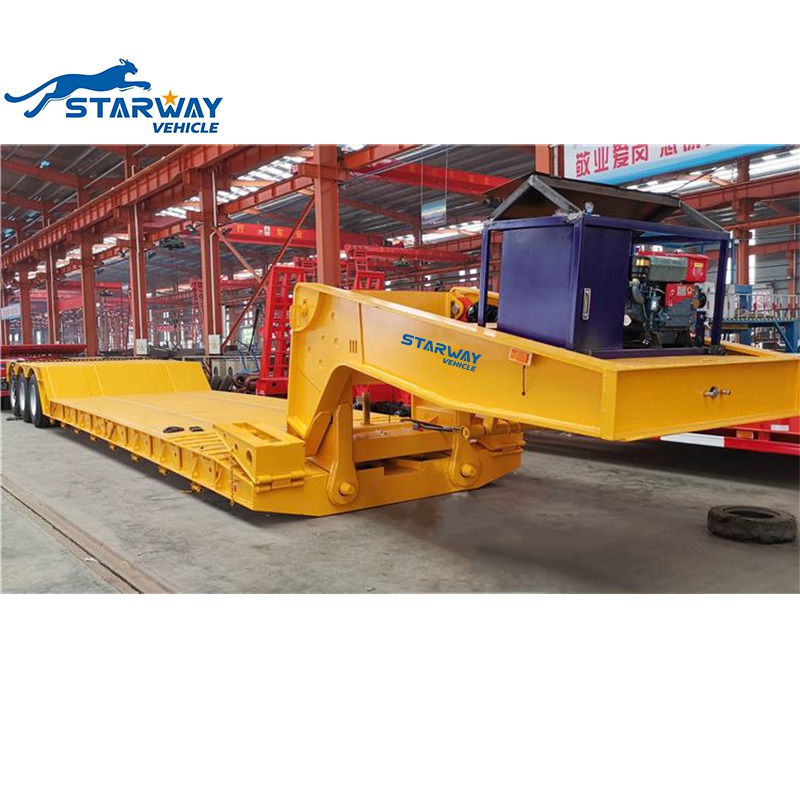

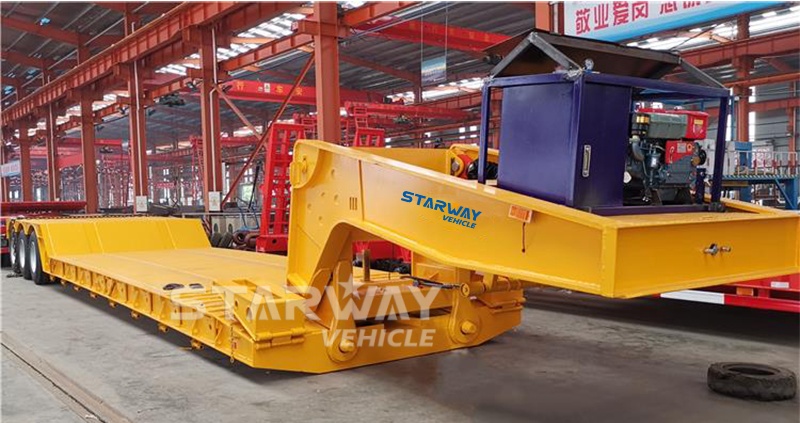

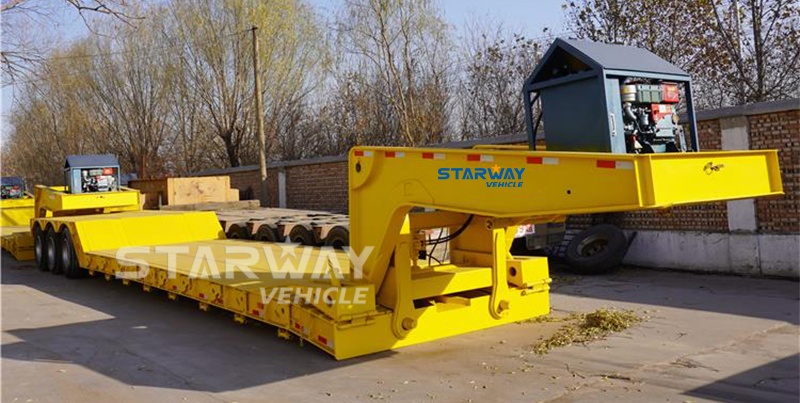

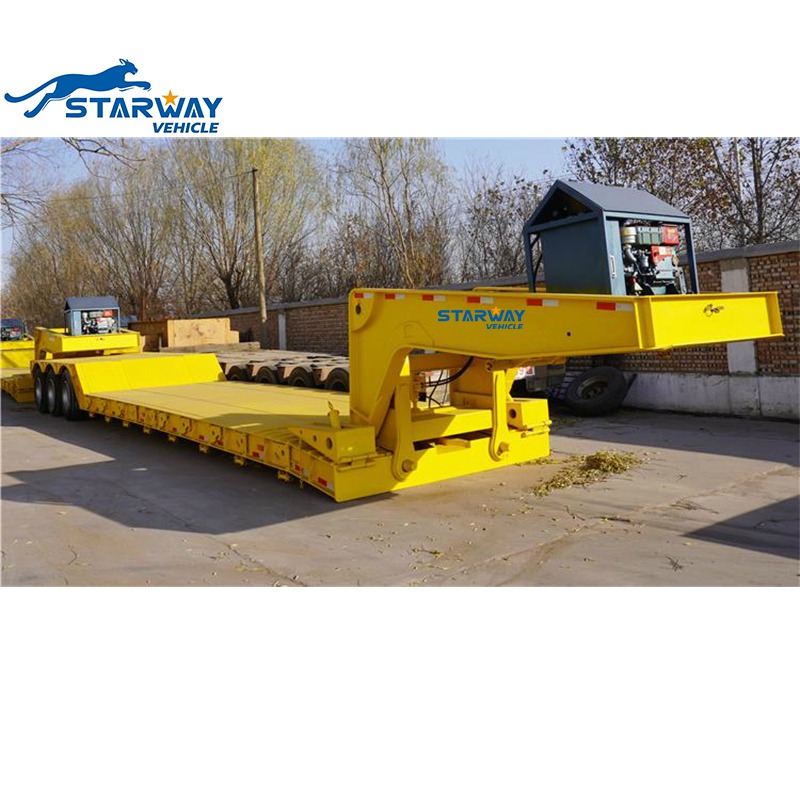

Application: Hydraulic gooseneck low bed trailers are widely used and are the most common type of low bed semi-trailer. The trailer uses a hydraulic cylinder to remove the gooseneck. When loading the cargo, the hydraulic device lowers and raises the trailer as needed.
Advantages: One benefit is that loading heavy objects from the front is safer than loading them from the rear or side. Loading from the back is unsafe, especially when carrying heavy equipment. The rear has a ladder structure. Therefore, a very long ladder is required to load heavy equipment. The heavy objects may fall from the ladder or fall from the rear to the cargo platform. Such a fall can damage the equipment or cargo before it is even transported.

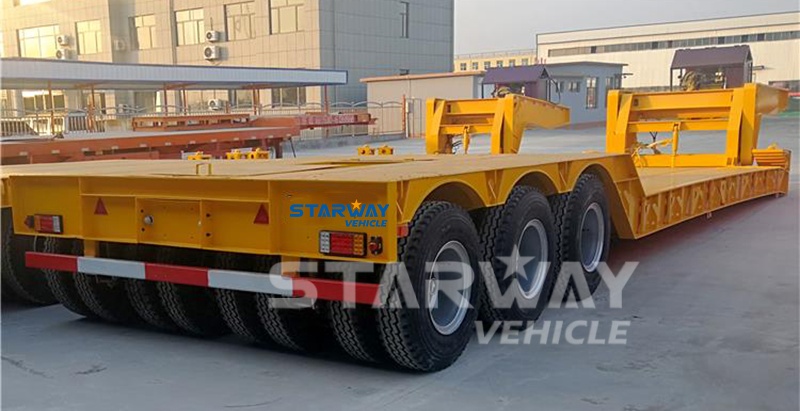

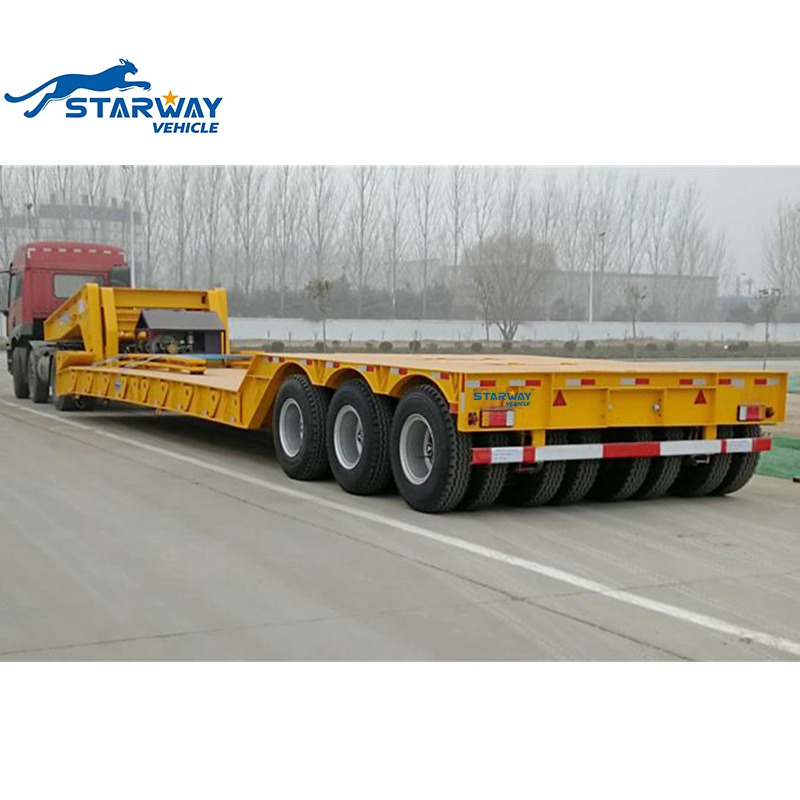

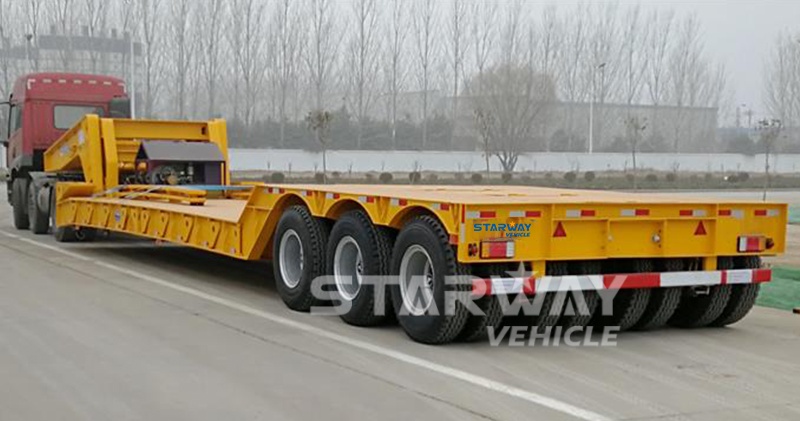

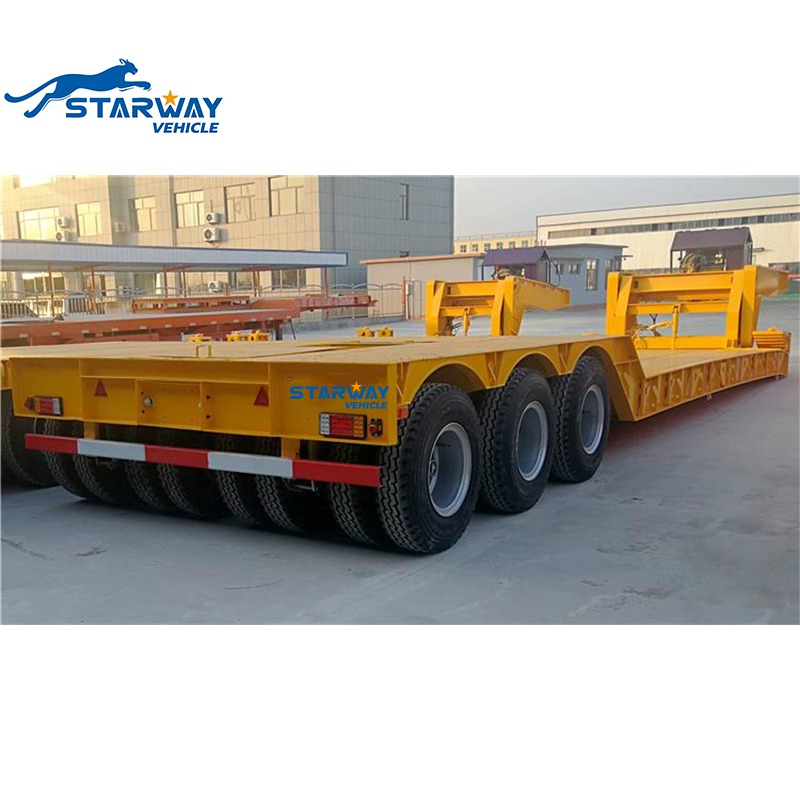

The Specification of starway 3 lines 6 axles lowbed semi trailer:
Dimensions: 18000mm*3000mm*18000mm (Standard Dimensions, Customizable)
Main Beam Material: Q345 / T700
Axles: 3 axles / 3lines 6 axles
Load Capacity:80-100 tons, Customizable
Detachable Goose neck: Available
Widened Parts: Available
Ladders: Mechanical spring / Hydraulic
Suspension: Heavy-duty Mechanical Suspension
Leaf Springs: 90mm*13mm*10pcs/90mm*16mm*10pcs
Tires: 12R22.5/8.25R20 (12)
King Pin: #50(2″)/#90(3.5″), JOST/other brands, replaceable
Landing Gear: 28 tons, two-speed, JOST/other brands
Paint: Electrophoretic paint for enhanced rust and corrosion resistance
Other Customizable Options: Rims, ABS, LED lights, reflective strips, etc.
