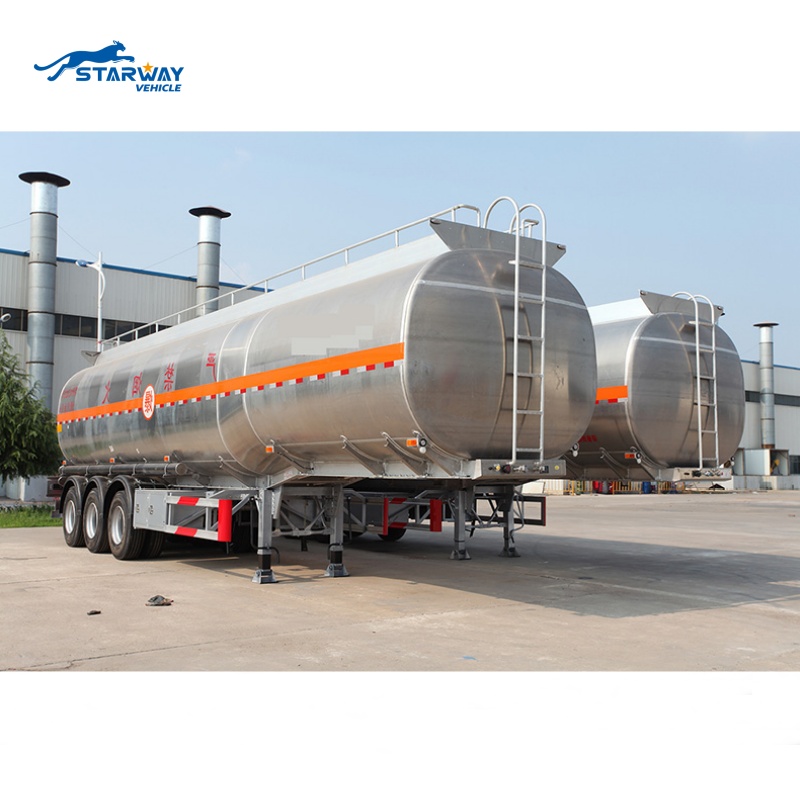

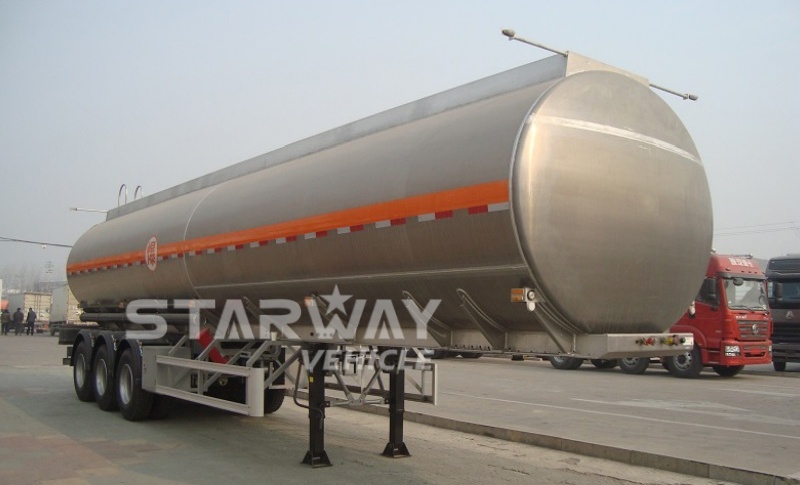

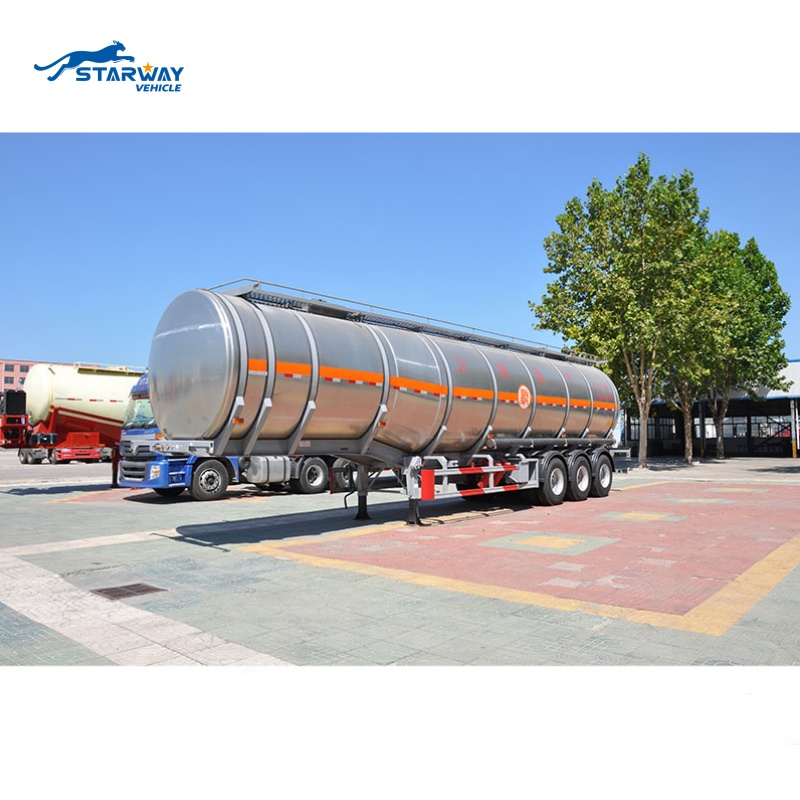

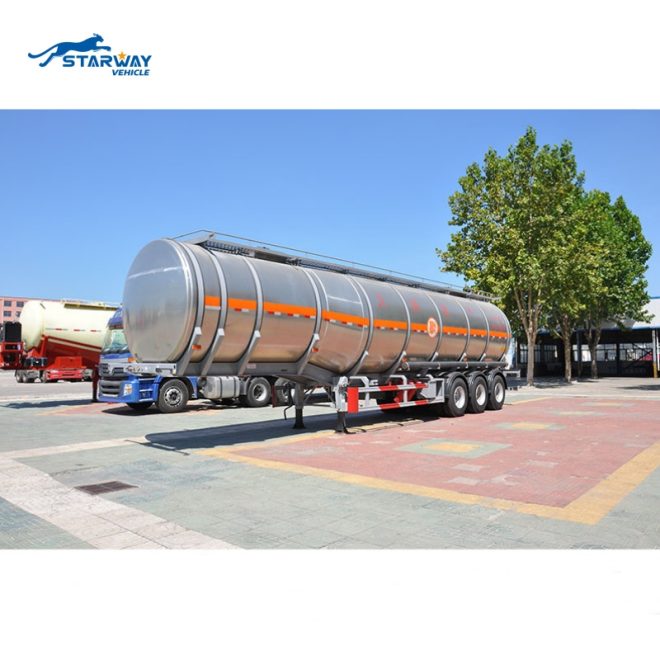

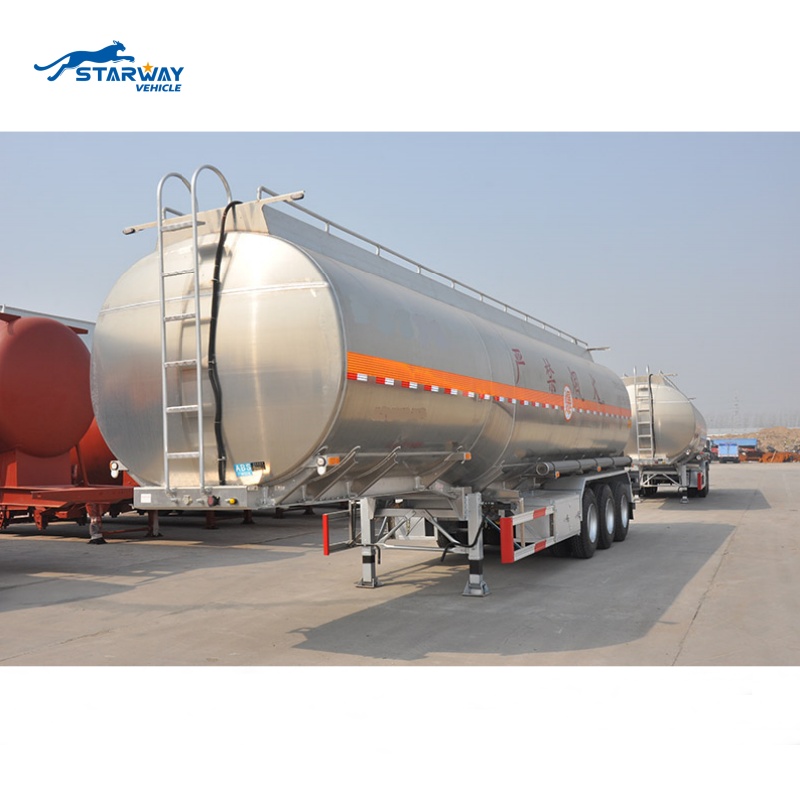

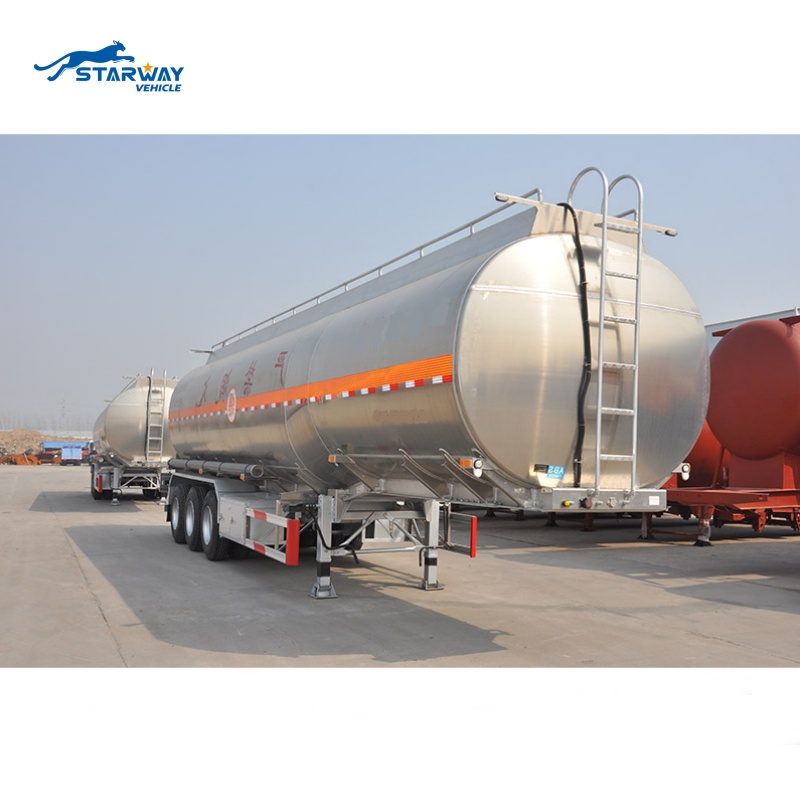

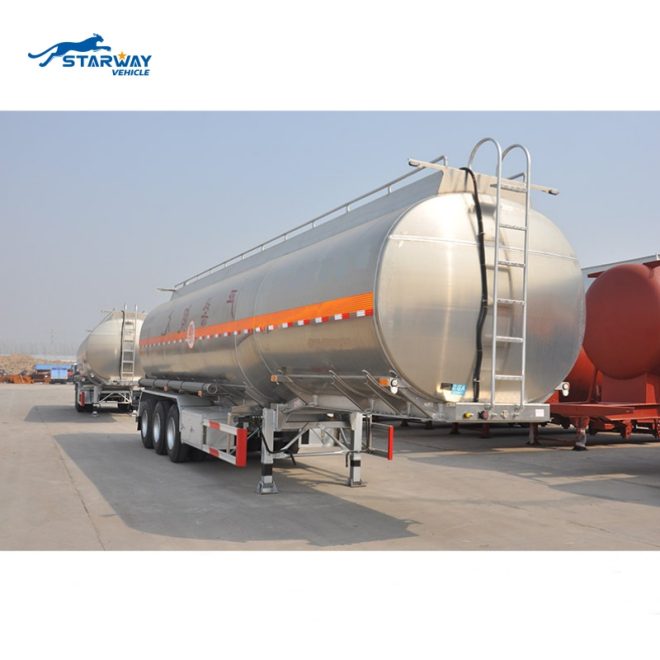

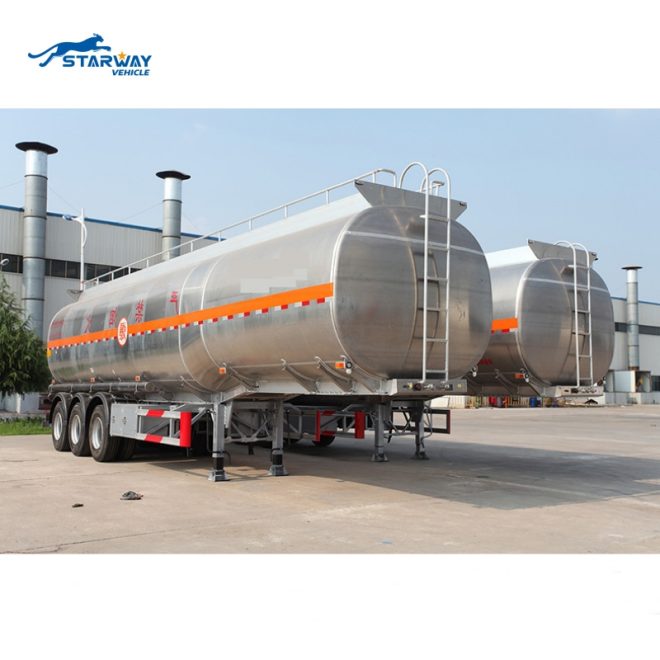

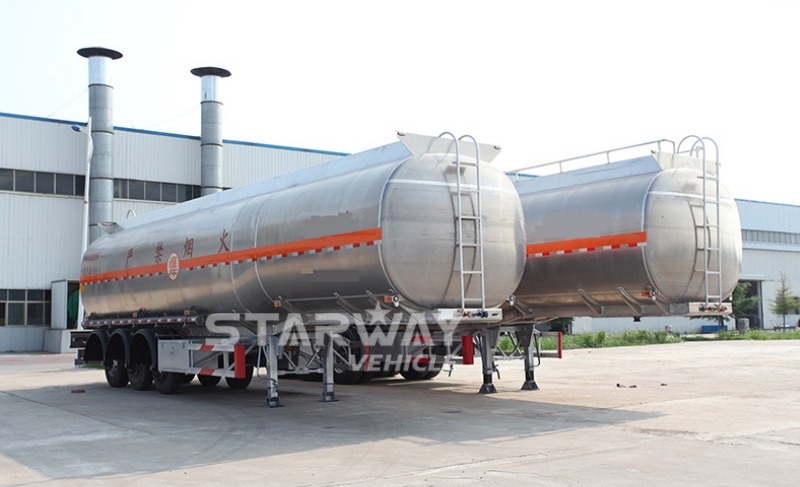

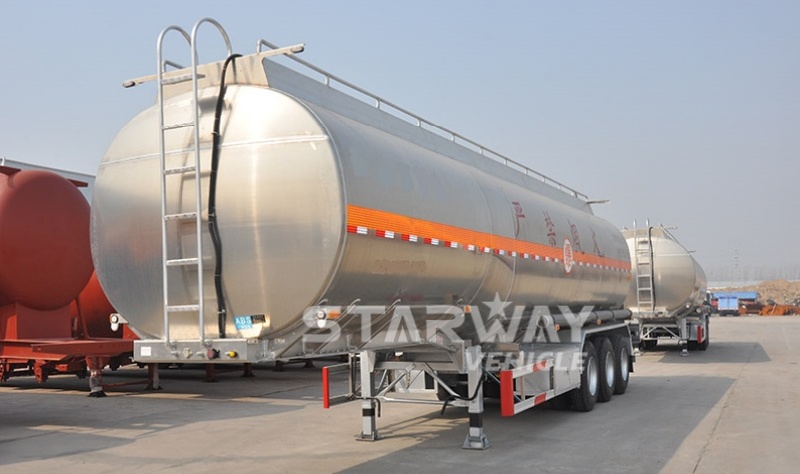

What’a a aluminum alloy oil tanker trailer ?

Aluminum alloy oil tanker semi-trailers are a type of tank semi-trailer, mainly used to transport liquid goods such as gasoline, diesel, and cooking oil. This type of vehicle is designed with a specific tank structure based on the characteristics of the goods being transported. It can withstand a certain internal pressure and is usually airtight to ensure the safety of the goods and reduce volatility. The capacity of a tanker can be as large as about 60 cubic meters, and the specific volume and load capacity depend on the vehicle design and regulatory requirements. For example, some aluminum alloy oil tanker semi-trailers have an effective volume of up to 43 cubic meters, which is suitable for the transportation of non-hazardous goods. Because they are made of aluminum alloy, they are lightweight, corrosion-resistant, energy-saving, and have a long lifespan, which can effectively improve transportation efficiency and reduce costs.

Tank body of semi-trailer oil tanker

The tank body is divided into oval or square round tank body, and heating and heat preservation series tank body can also be produced.

There are multiple wave-proof baffles inside the tank. High-pressure gas leak detection is used to make the tank have high strength, stable center of gravity, and safe and stable transportation by vehicles.

Centrifugal pumps, gear pumps, and stainless steel pumps can be selected according to the purpose of the tanker, which have the characteristics of large flow and fast suction speed.

Features of semi-trailer tanker

Tank shape: oval, round.(Customer Requirement)

Tank material: aluminum alloy, stainless steel, carbon steel. (Customer Requirement)

Unloading system: bottom loading system, oil and gas recovery system, anti-overflow system.

Features: light weight, large load capacity, high transportation efficiency and operating income, good electrical conductivity, high safety performance, no rust, no pollution to the shipping medium.

The specification of starway aluminum alloy oil tabker trailer ：

Standard Dimensions: 12000mm*2500mm*3800mm

Material: aluminum

Axles: 3 axles, each rated at 13/16 tons, Customizable

Tank Capacity: 45 CBM, Customizable

Tank Thickness: 5mm

End Plate Thickness: 6mm

Baffle Thickness: 4mm

Compartments: 1 to 9, Customizable

Manhole: Anti-Explosion

Lift Axle: Available

Vehicle Examination: X-RAY Room Examination

Tank Shape: D Style/Round Style

Suspension: Mechanical suspension/Air suspension
