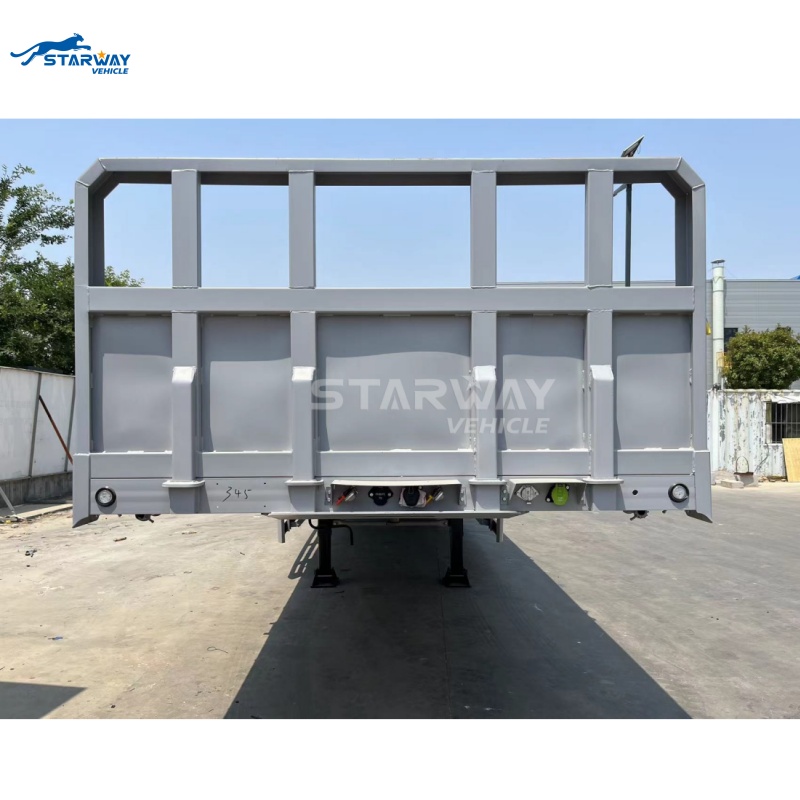

What’s a side wall semi trailer ?
The sidewall semi-trailer is a common type of semi-trailer, mainly used to transport goods such as building materials, mechanical equipment, etc. It is convenient for loading and unloading goods of different sizes. The sidewall can be fixed by the side locks, and can be lowered when loading and unloading goods, which is convenient for the operation of equipment such as forklifts. This type of vehicle is simple, practical, and highly adaptable, and is one of the basic models in the freight industry.
The vehicle body is made of high-quality steel, advanced technology, and strict production. The vehicle has a reasonable structure, reliable performance, easy operation, and beautiful appearance. The frame is a through-beam structure, and the longitudinal beam is straight or gooseneck. The suspension is made of series-type leaf springs and suspension supports, which has strong rigidity and strength to support loads and reduce impact.
Our sidewall semi-trailer complies with national regulations, has a reasonable lightweight design, and is durable. It has a light body weight and a strong load-bearing capacity, which is very suitable for the current transportation market and can carry more and run faster.
Product use and use environment:
1. Transportation distance: suitable for medium and short-distance transportation turnover.
2. Use environment: urban roads, highways, etc.
3. Cargo type: light-weight cargo, agricultural products, metal cargo, etc., such as steel, especially the transfer of steel coils and plates in steel mills and steel distribution centers.

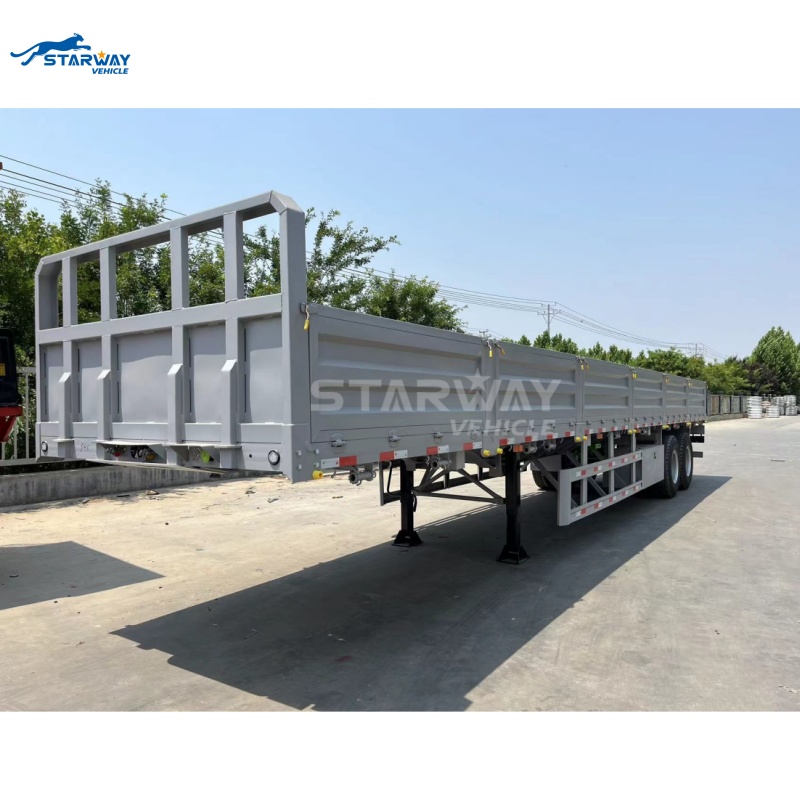

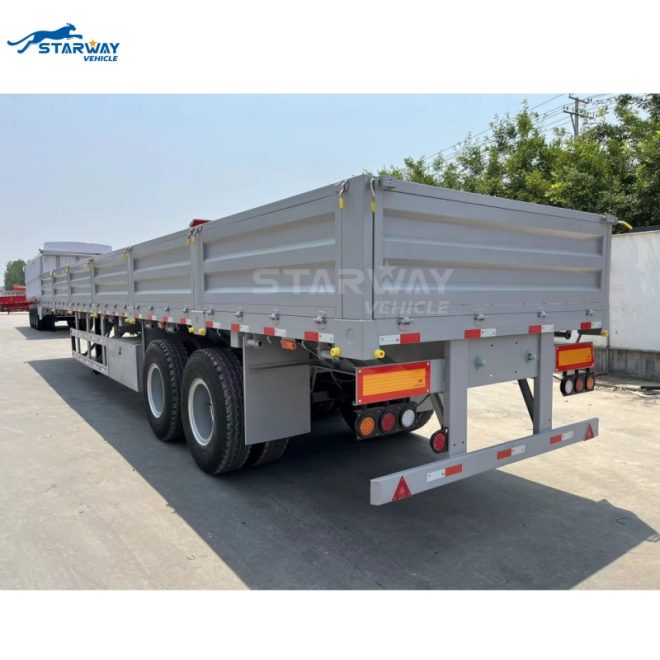

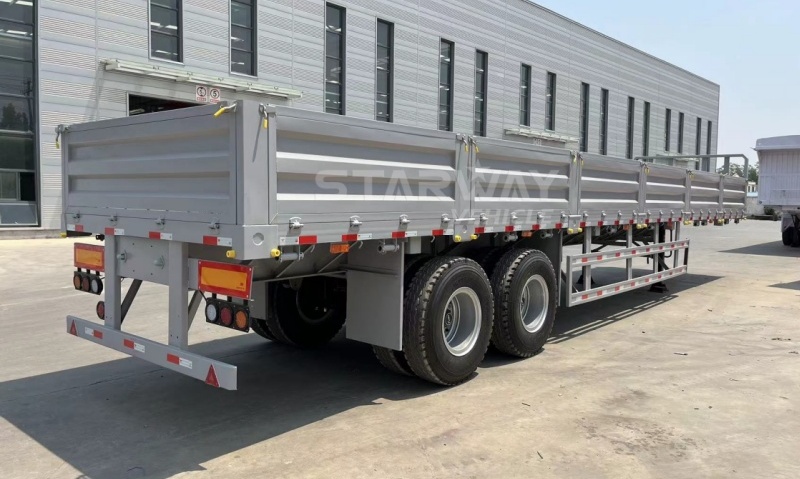

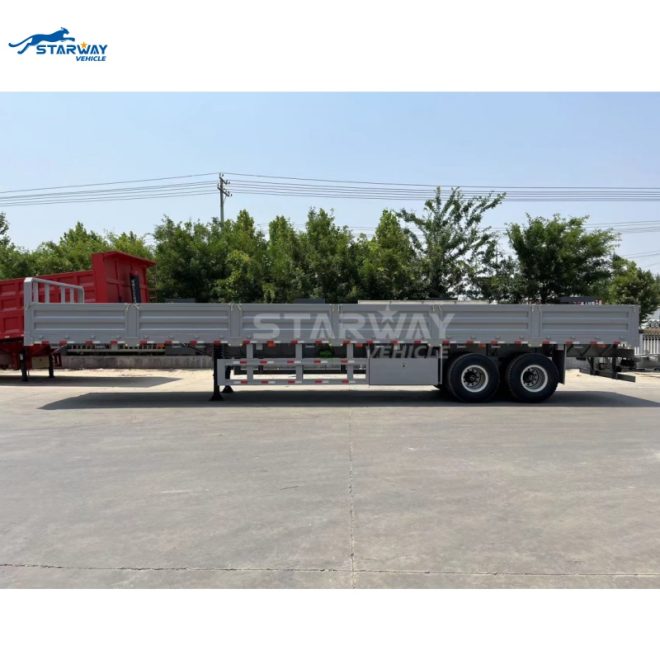

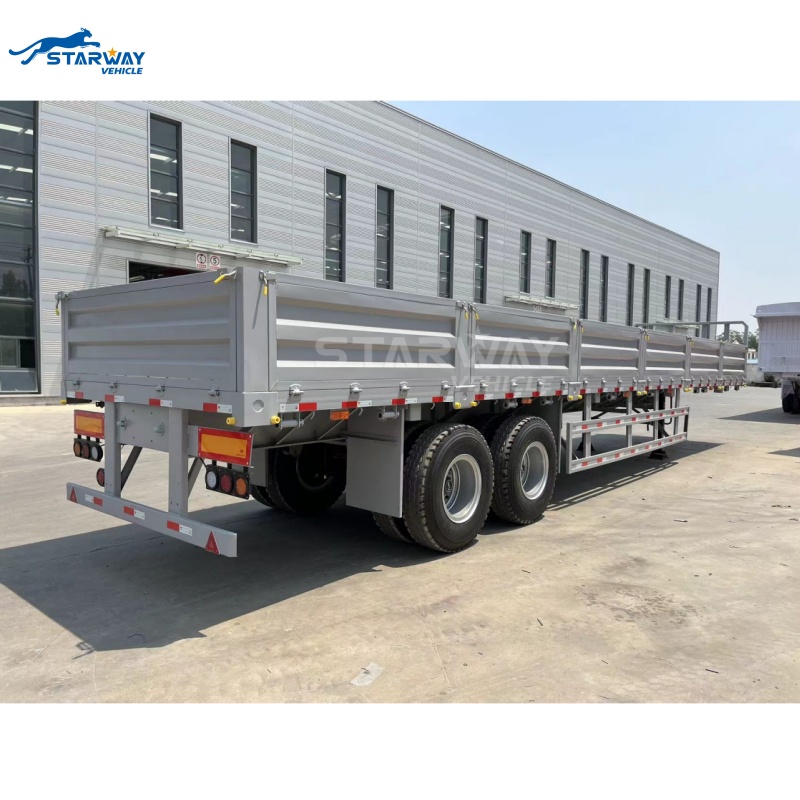

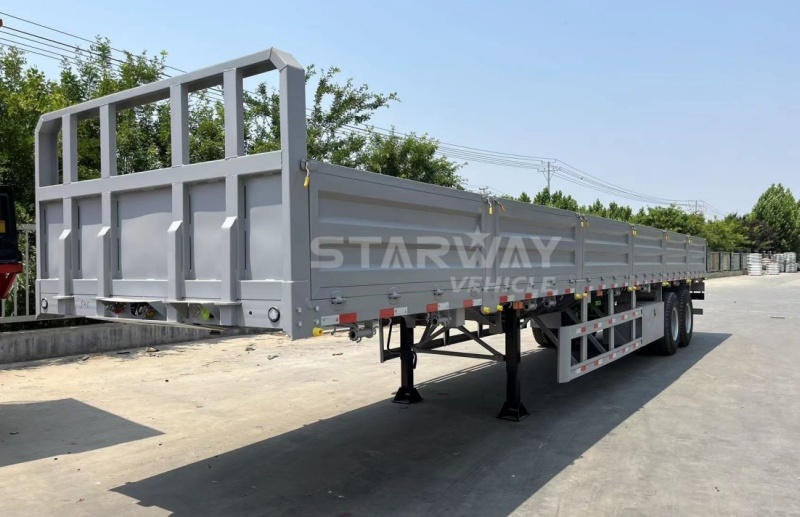

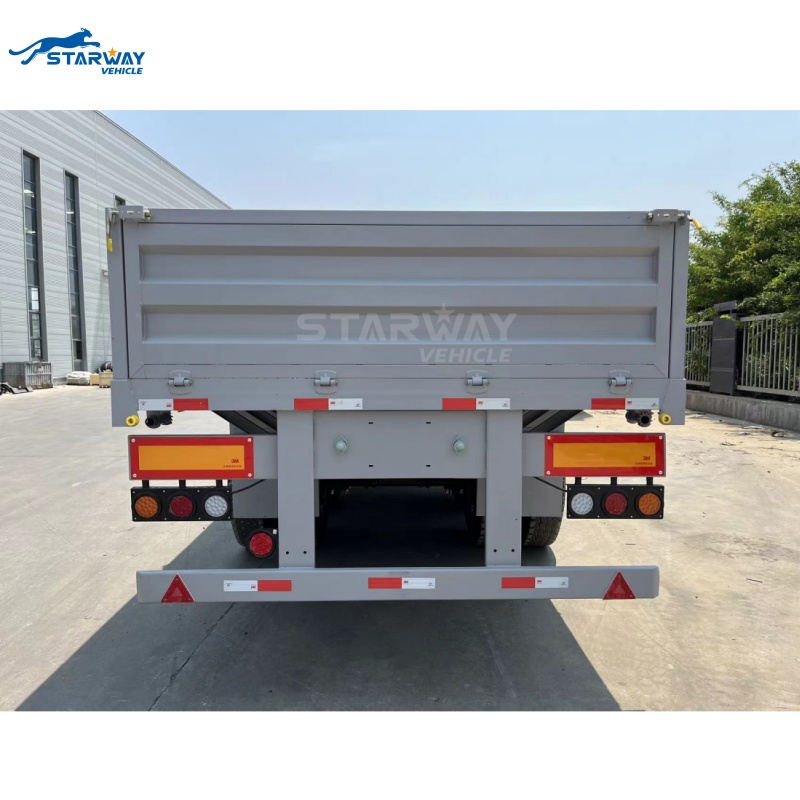

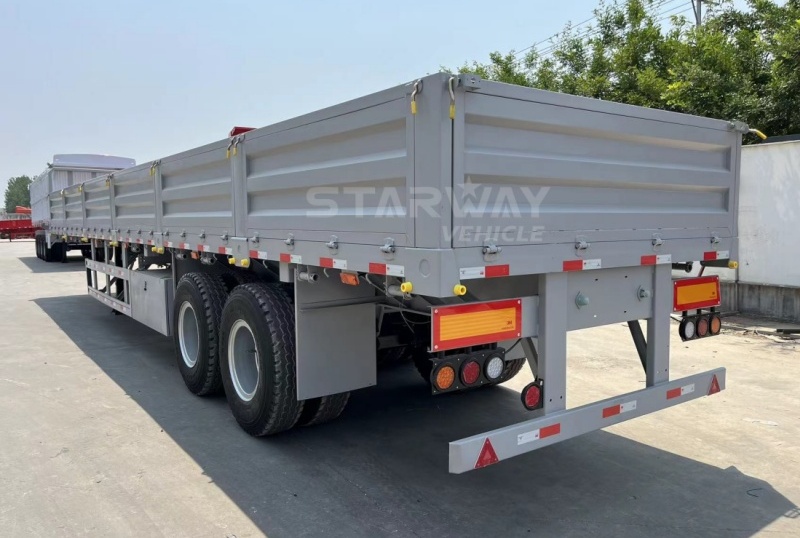

The specification of starway 2axles side wall semi trailer:
Dimension :13000x2500x1580mm
Sidewall Height :600mm
Main beam:Material: Q345B; “H” beam height: 500mm; Top/middle/bottom: 12/8/14(mm)
Through beam:#10 channel steel
Side beam :#16 channel steel
Loading capacity :60 T
Paint: Powder spraying and coating
Color:Per customer’s requirement
Axle:BPW/Fuwa/Starway/ 13 ton x 3
Tire: Triangle 12R22.5x 12 + one spare tyre
Rim:900*22.5 *13
Suspension:Mechanical suspension or air suspension(brand optional)
Leaf spring:Leaf spring 10pcs*90*13mm or air bag
Landing gear:JOST or other brand two-speed, landing gear 28T
Electrical System:24V 7-way socket; front marker lamp: white; side marker lamp: white & red; rear lamp: red; turning signal lamp: amber; wiring: electric cable protected by PVC conduit on main frame
Braking System :Dual line pneumatic brake, SAE hose and connector,with WABCO ABS
Accessories:Toolbox*1; spare tire carrier*2 , 12 pcs container twist locking
